Hydraulic Scissor Dock lift Description:

Hydraulic Scissor Dock Lift provides the best solution for loading and offloading goods between trucks and ground floor.If pit installed hydraulic scissor dock lifts units that allow ground level access for all ranges of material handling equipment without the need for ramps.Vertical travel to different of height which accommodates virtually all truck or trailer bed heights.Breaking down pallets of product can be eliminated, thereby dramatically increasing efficiency and safety.



Noted: Usually small scissor lifts width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves
• 10. Lift type, electric hydraulic scissor


Parameters:

• 1. Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose


Hydraulic Scissor Dock lift Precautions:

• 1. Manual decline valve
• 2. Explosion proof  valves between oil cylinder and oil tube.
• 3. Number of floor layers indicator
• 4. Door inter-locking device if indeed need.
• 5. Over height protect
• 6. Running indicator
• 7. Over load alarm system if need


Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements


Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Small scissor lifts application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

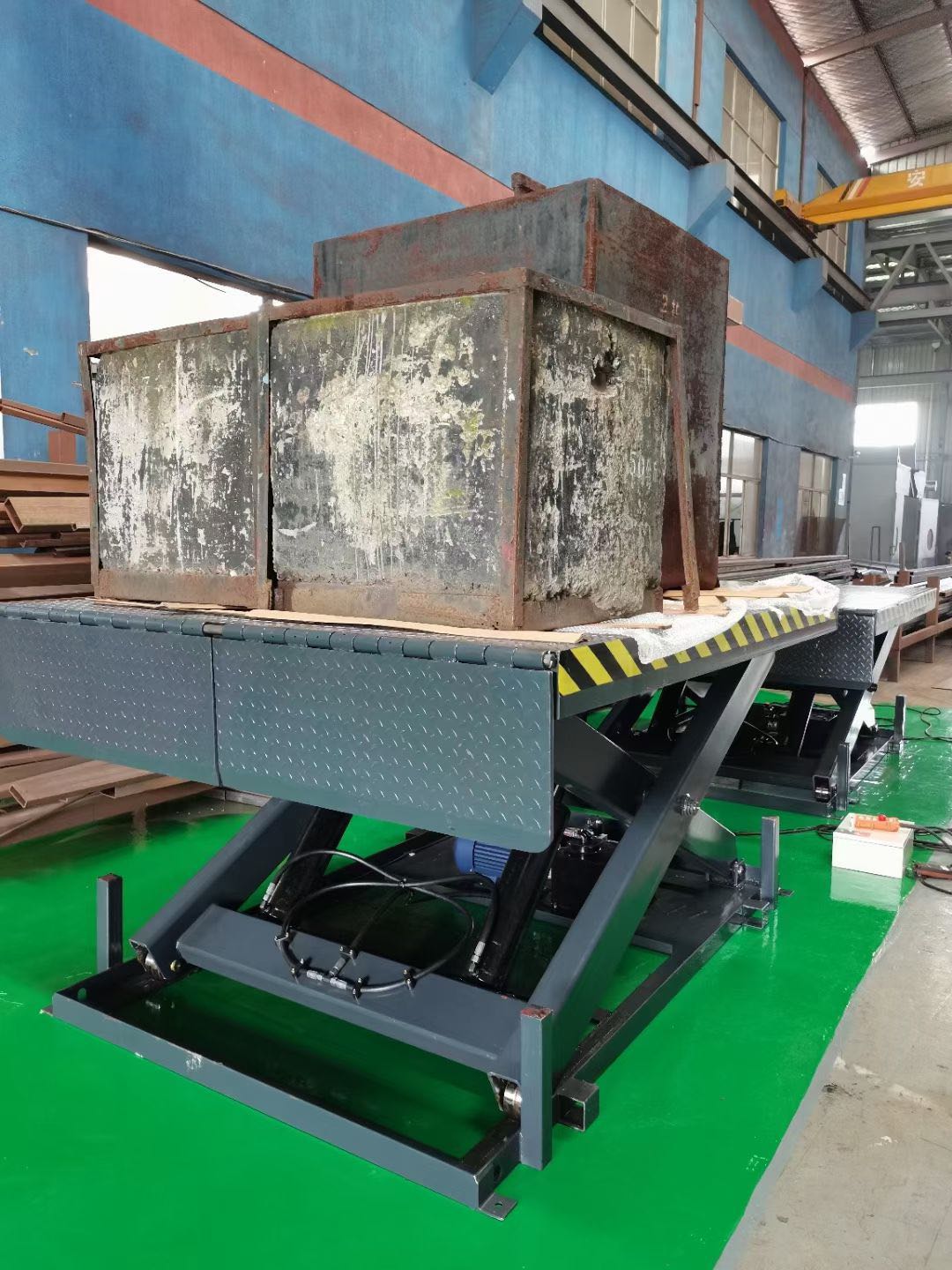

Custom Hydraulic Scissor Dock lift From Client Feedback:





4500KG Hydraulic Dock Lift

2000*3000mm Hydraulic Dock Lift

Scissor Platform Hydraulic Dock Lift
