800mm 1000mm Retractable Lip Telescopic Dock Leveler For Cold Storage House
Retractable Lip Dock Leveler Description:
-
Retractable Lip dock levelers with telescopic lip is the most effective solution for accessing the load from the warehouse to the truck during loading and unloading operations. These levelers are used when a precise lip positioning is needed to the vehicle body, such as the lateral load, as well as the minimum distance between the edge of the vehicle body and the load located inside it. The retractable lip allow operation with vehicles whose width is narrower than the width of the leveler. Operation principle is that when activated, the leveler is lifted and the lip is pushed, then the platform is lowered until the lip reaches the floor of the vehicle
-
| Model | Capacity (kg) | Platform size (mm)W*L | Lip Telescopic length
(mm) | Adjustable height (mm) | Power (kw) | Pit size (mm) |
| UP(+) | Down(-) | W | L | H |
| TDCQ6-0.6 | 6000 | 1830*3300 | 800/900/1000 | 300 | 300 | 0.75 | 1860 | 3300 | 600 |
| TDCQ8-0.6 | 8000 | 1830*3300 | 800/900/1000 | 300 | 300 | 0.75 | 1860 | 3300 | 600 |
| TDCQ10-0.6 | 10000 | 1830*3300 | 800/900/1000 | 300 | 300 | 0.75 | 1860 | 3300 | 600 |
| TDCQ15-0.6 | 15000 | 1830*3300 | 800/900/1000 | 300 | 300 | 0.75 | 1860 | 3300 | 600 |
Noted: Usually the retractable lip dock leveler width is 2000mm, it also can be custom as your requirements!.The lip can extend telescopic reached 800mm/900/1000mm.
Main Features:
1. 20mm thickness anti-skid plate make the telescopic lip
2. 8-10 pieces "C" or "H" reinforcement beab to support heavay duty deck.
3. Anti-skid high-strength chequered steel on the top face of the platform.
4. Full width one -piece lip retractable by electric hydraulic system.
5. Heavy duty high pressure hydraulic cylinders
6. First class imported hydraulic power pack, good seal capacity and long lifespan
7. Rubber bumpers to protect machine-self when the truck reverse to dock platform.
8. Full range toe guard to protect user when operater use it.
Applications:
1. Site: Work Shop, logistic center, big cold storge centre etc.
2. Retractable Lip Dock Leveler use: Loading/unloading Cargo etc.

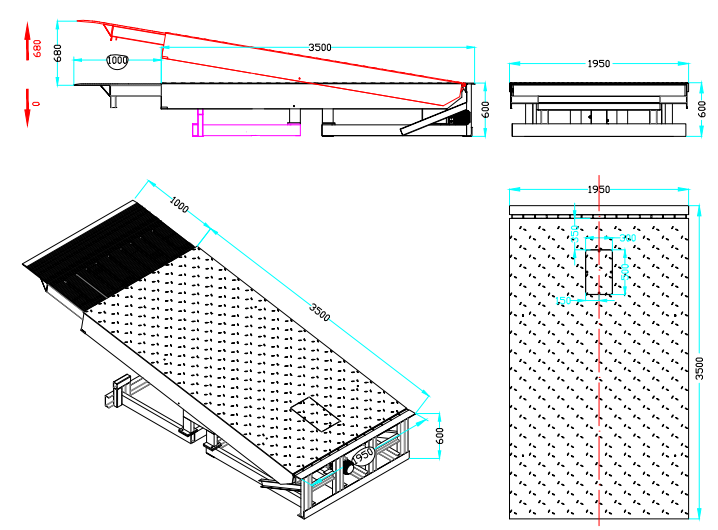

Retractable Lip Dock Leveler Sketch:

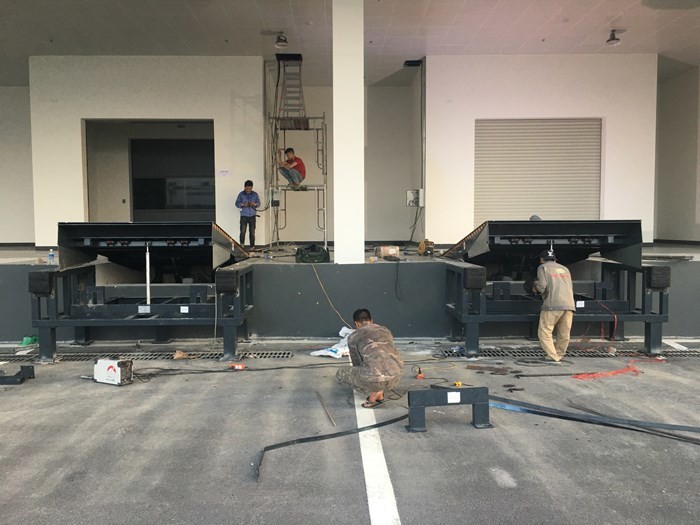

Feedback from client installation site:

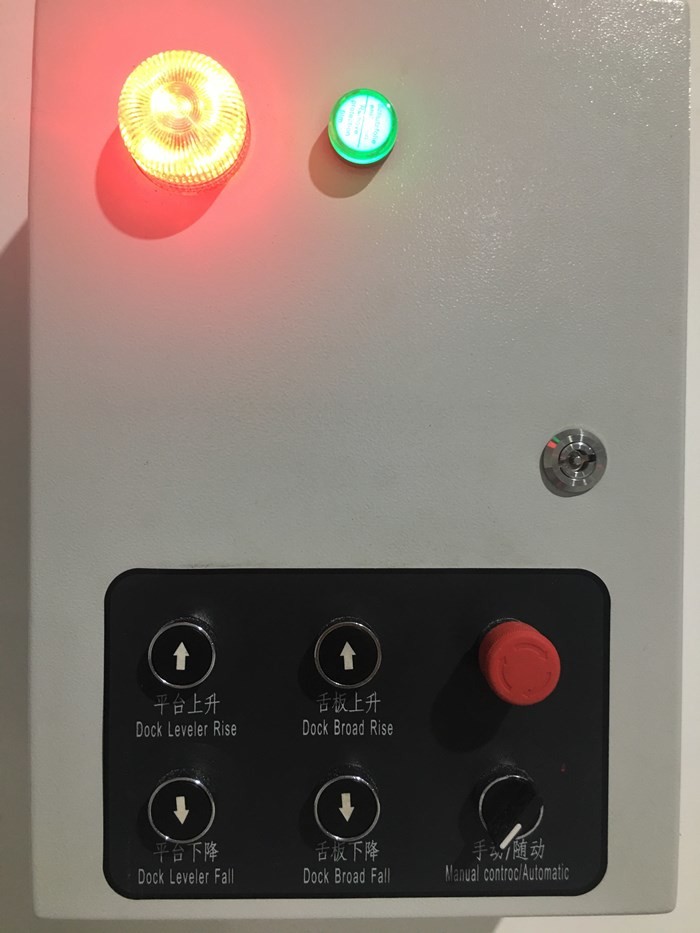

Telescopic control box:
Retractable Lip Dock Leveler Safety Precaution:
1. Emergency button
2. Toe guards on both side to protect operation worker feet.
3. Maintaince rod break though the lip fully protect the safety of the serviceman.
4. Bumper block protect the dock leveler it-self when truck reverse to th.
5. Oil tube with steel mesh structure . Max oil pressure 48MPA.
6. Double cylinders support the lip telescopic that so stable and reliable.
Optional Configuration:
Hydraulic Power Pack:ARGO-HYTOS Swiss brand. Electric controller with emergency or without.
Configurations:
Electric system: Schneider contactor, CHINT electrical components
Hydraulic System: ARGO-HYTOS Swiss brand power pack
Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
Main Support: 8-10pieces" C" or "H" beam under the deck to supporting.
Deck lip platform thickness: 20mm anti-skid plate
High-pressure oil hose: double steel mesh in the rubber hose.
